- Automatic lubrication (oil pump)
- 8 (kevlar) vanes
- Fan cooling continuous duty
- Belt drive, hydraulic, or angle drive
- CC or CCW rotation
- Top or side mount configuration available
- Air intake filter

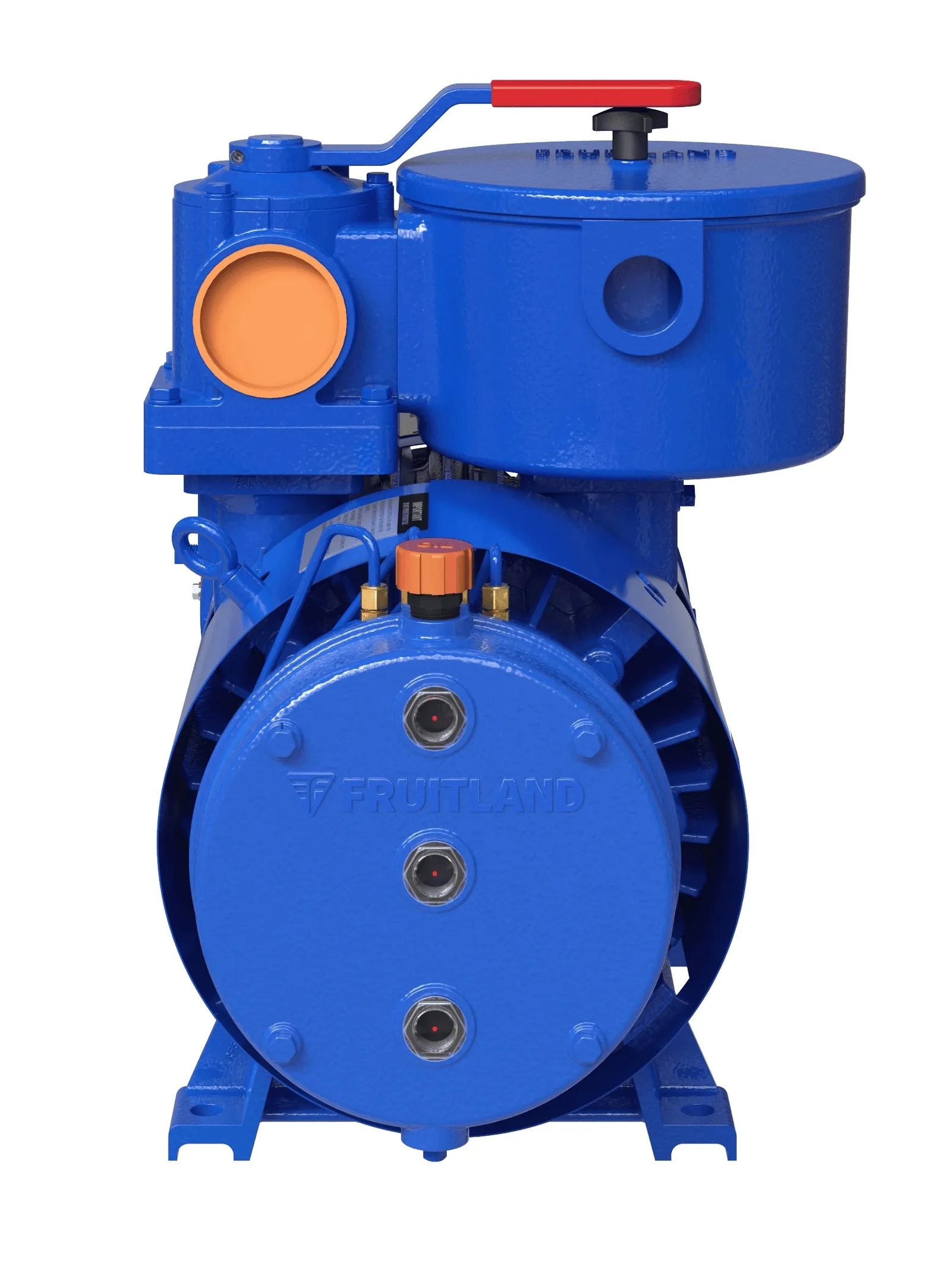

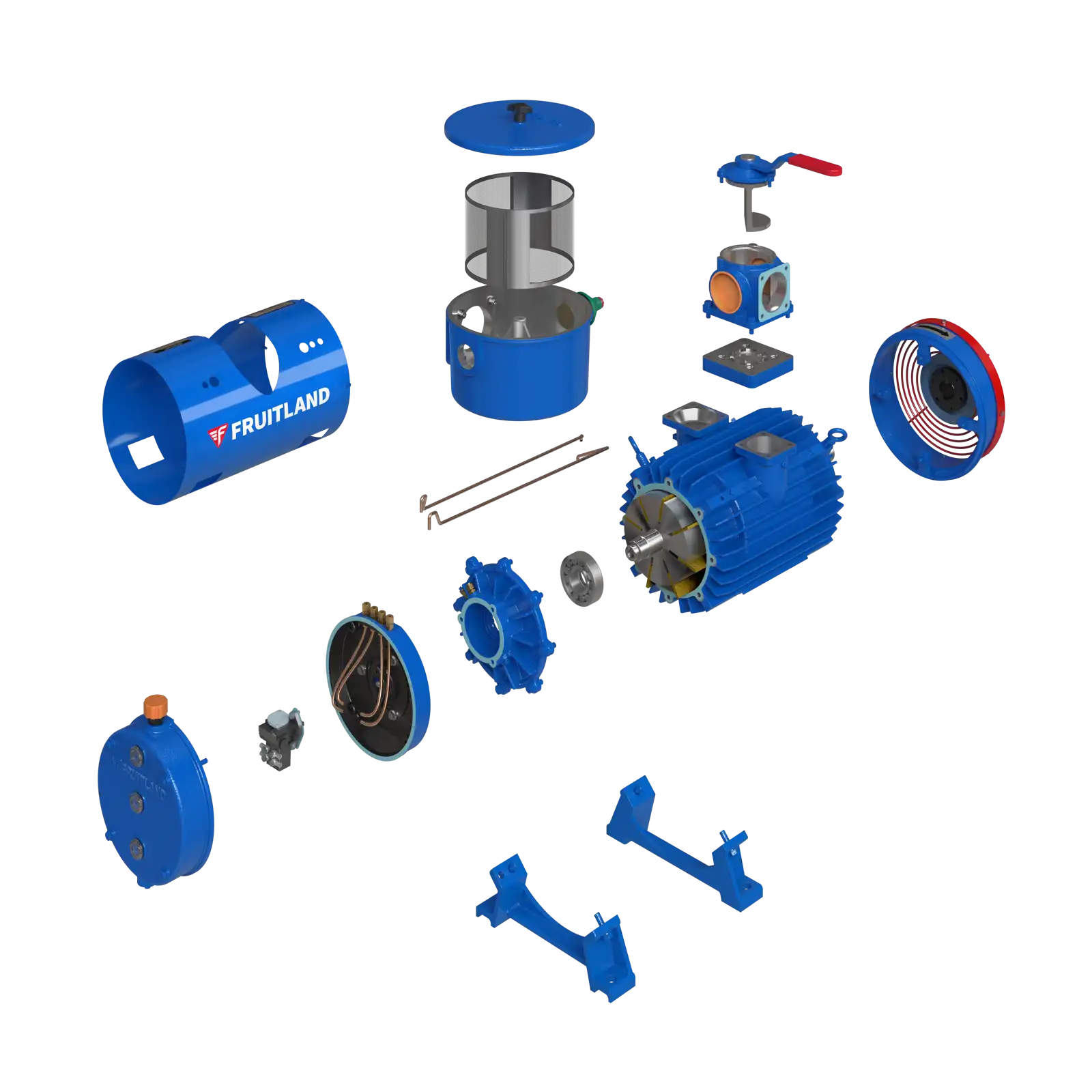

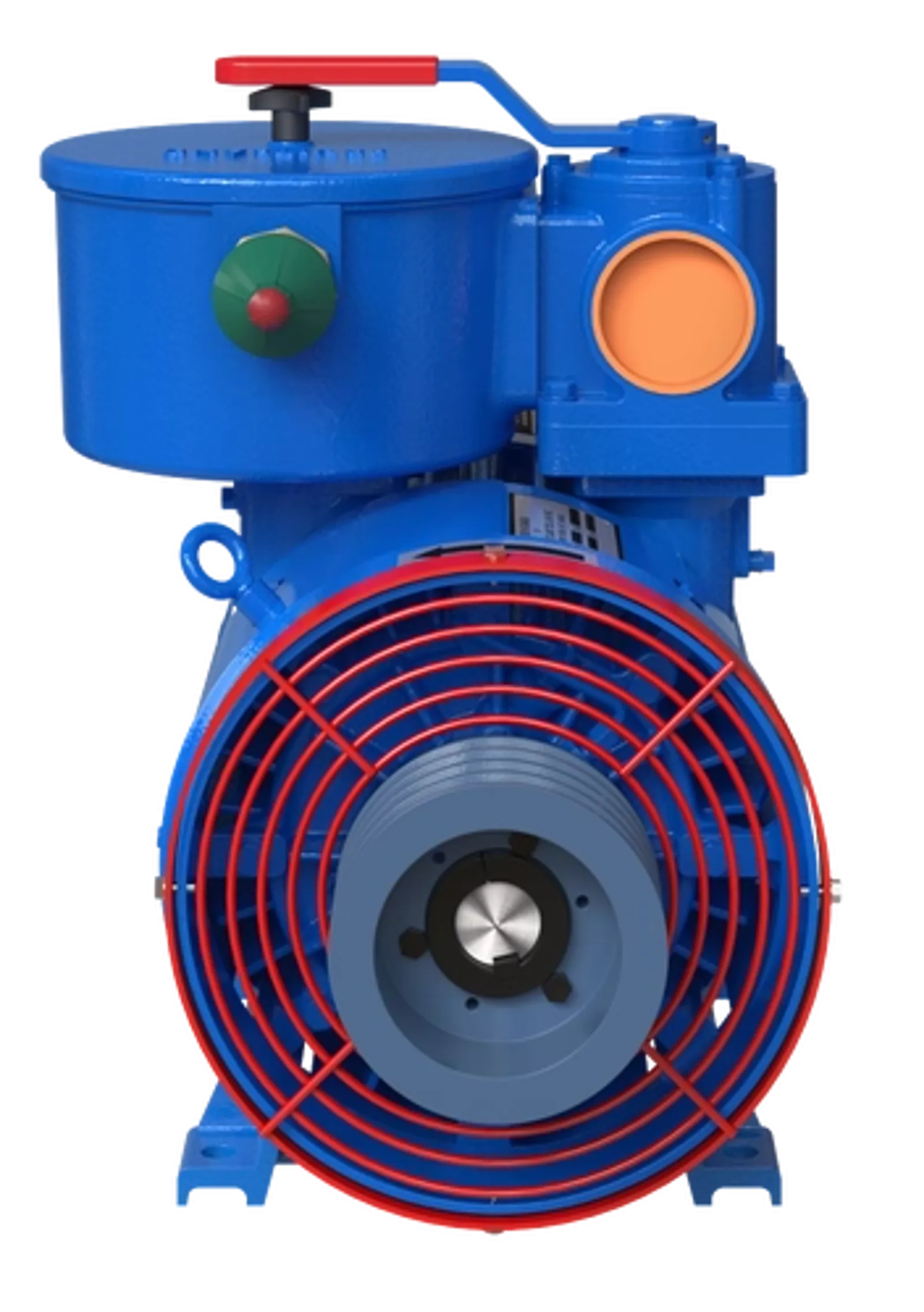

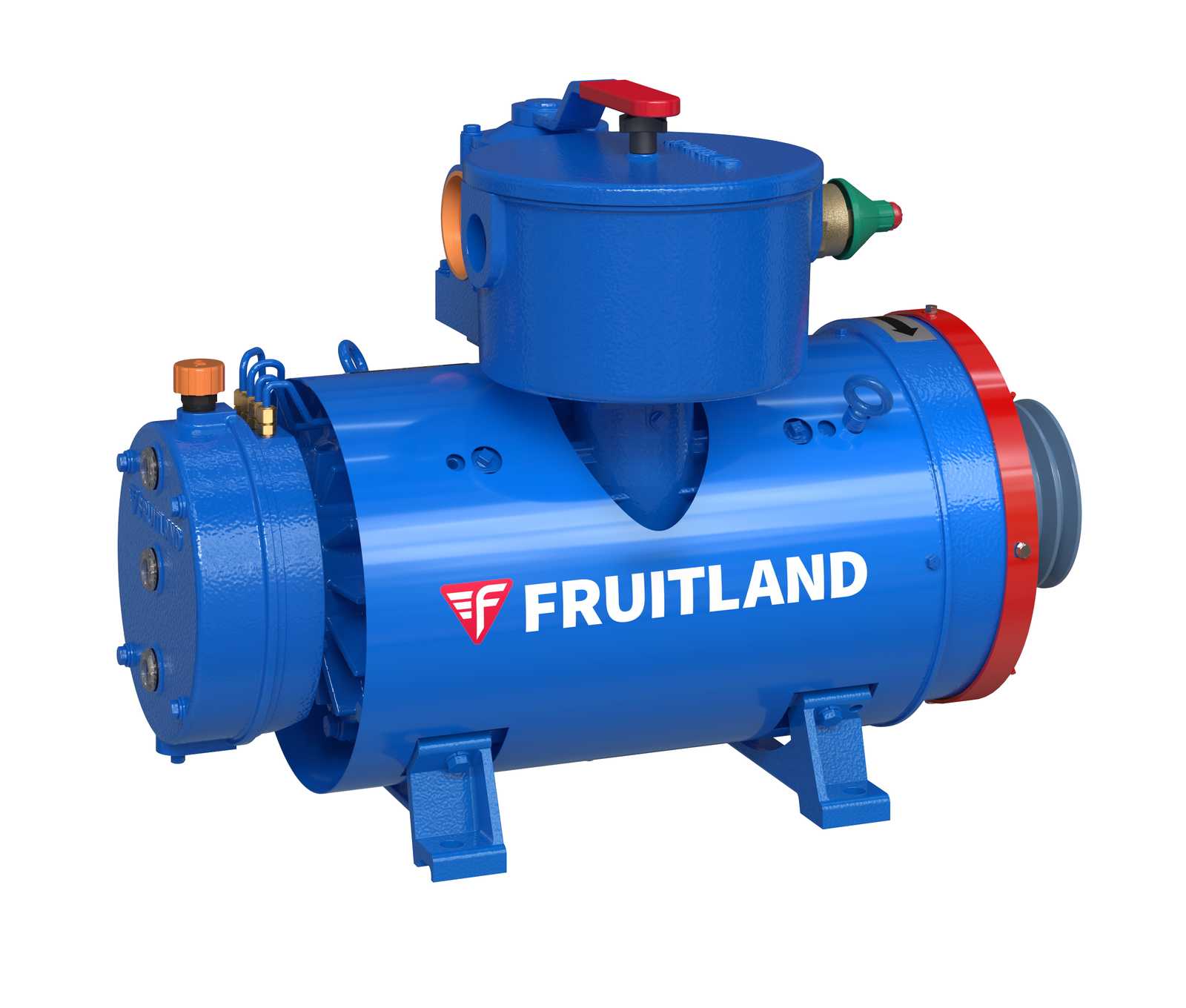

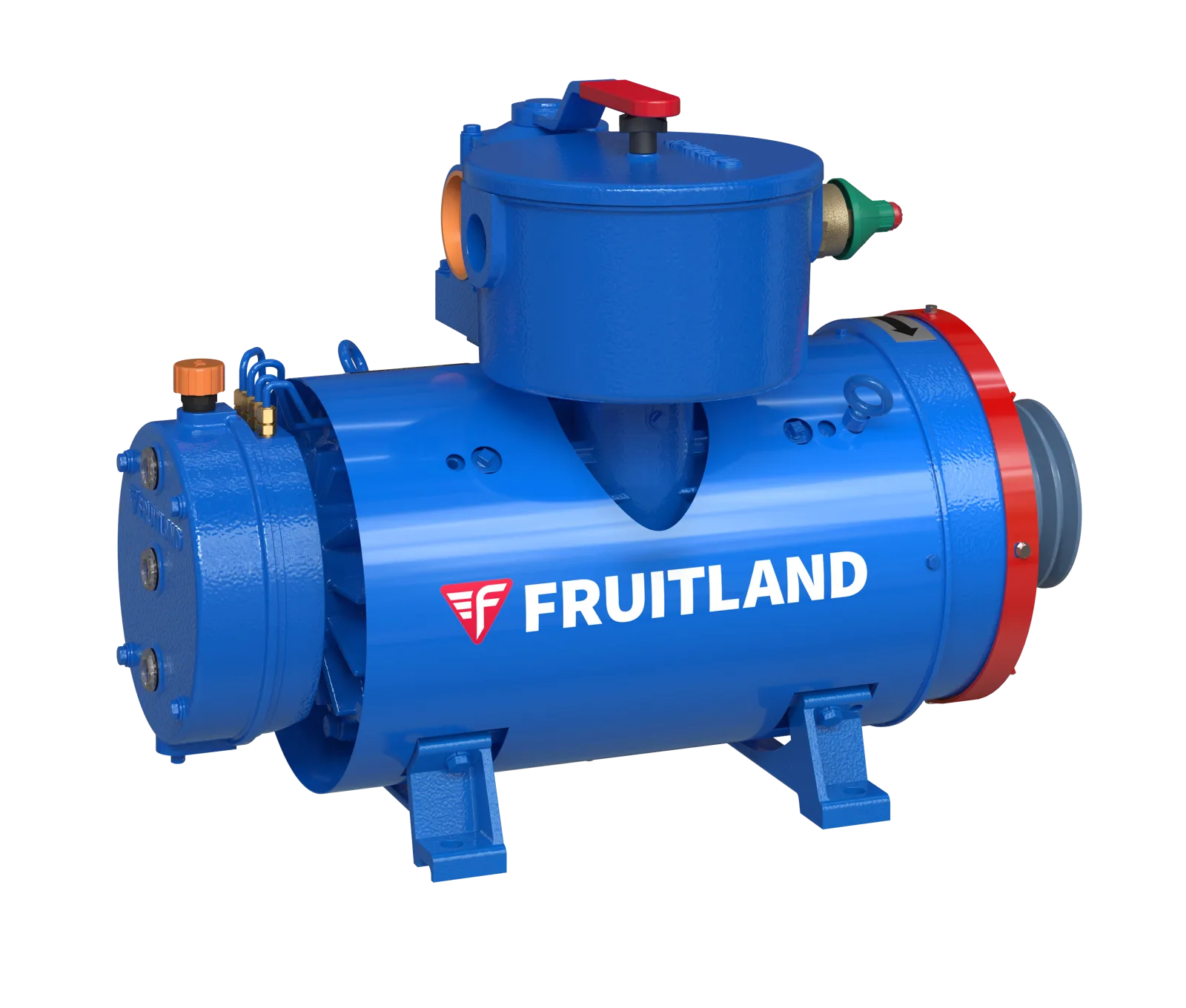

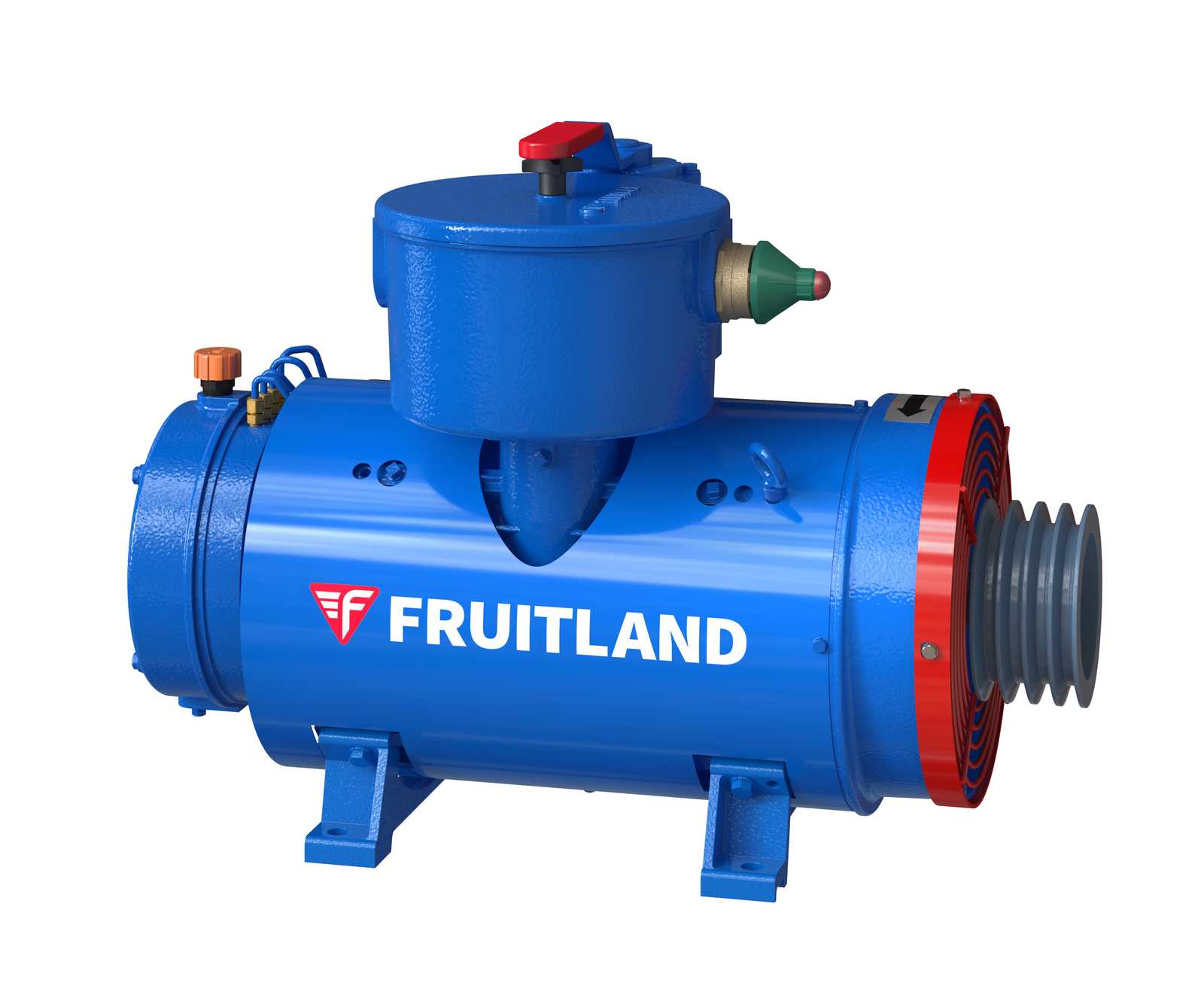

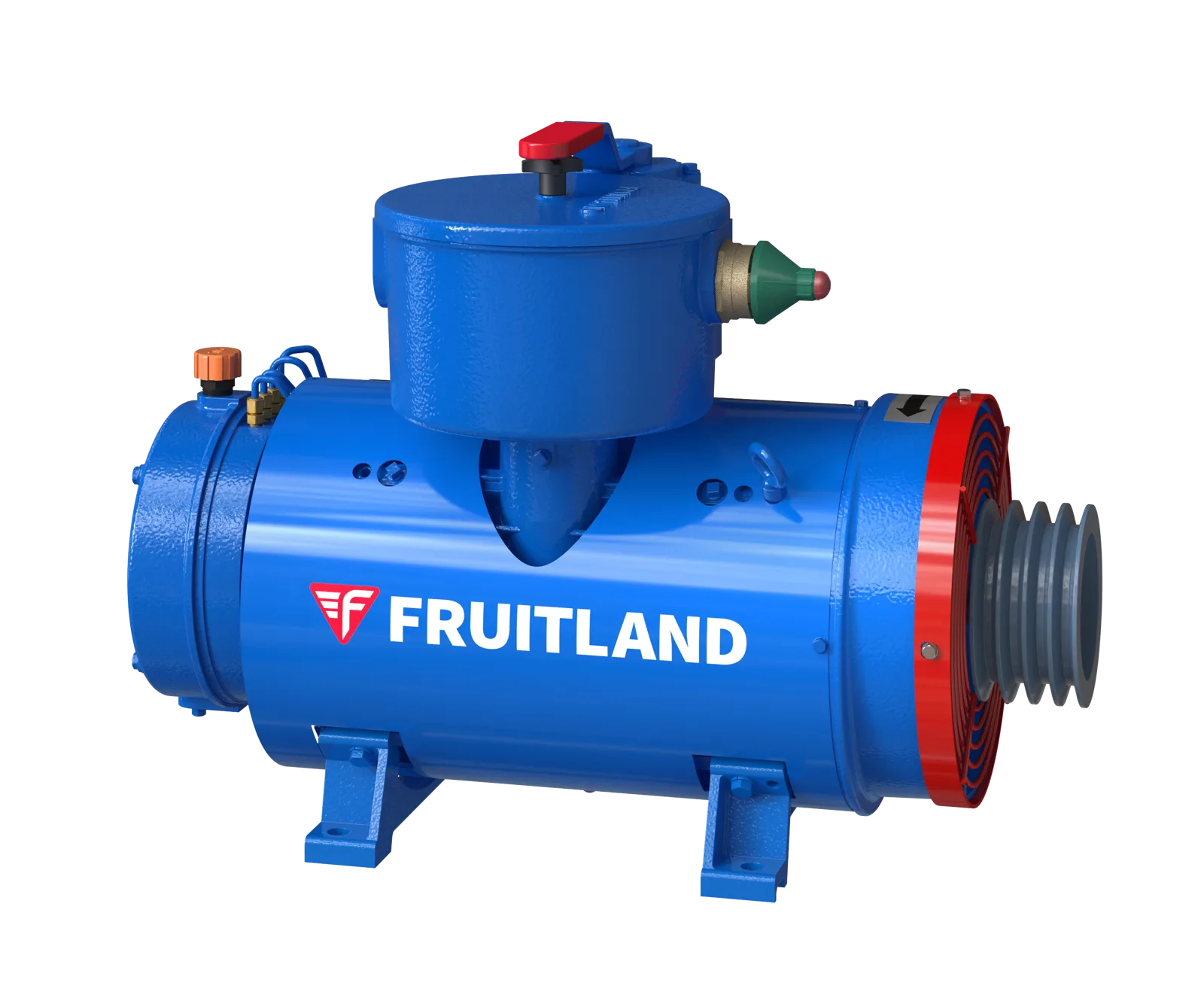

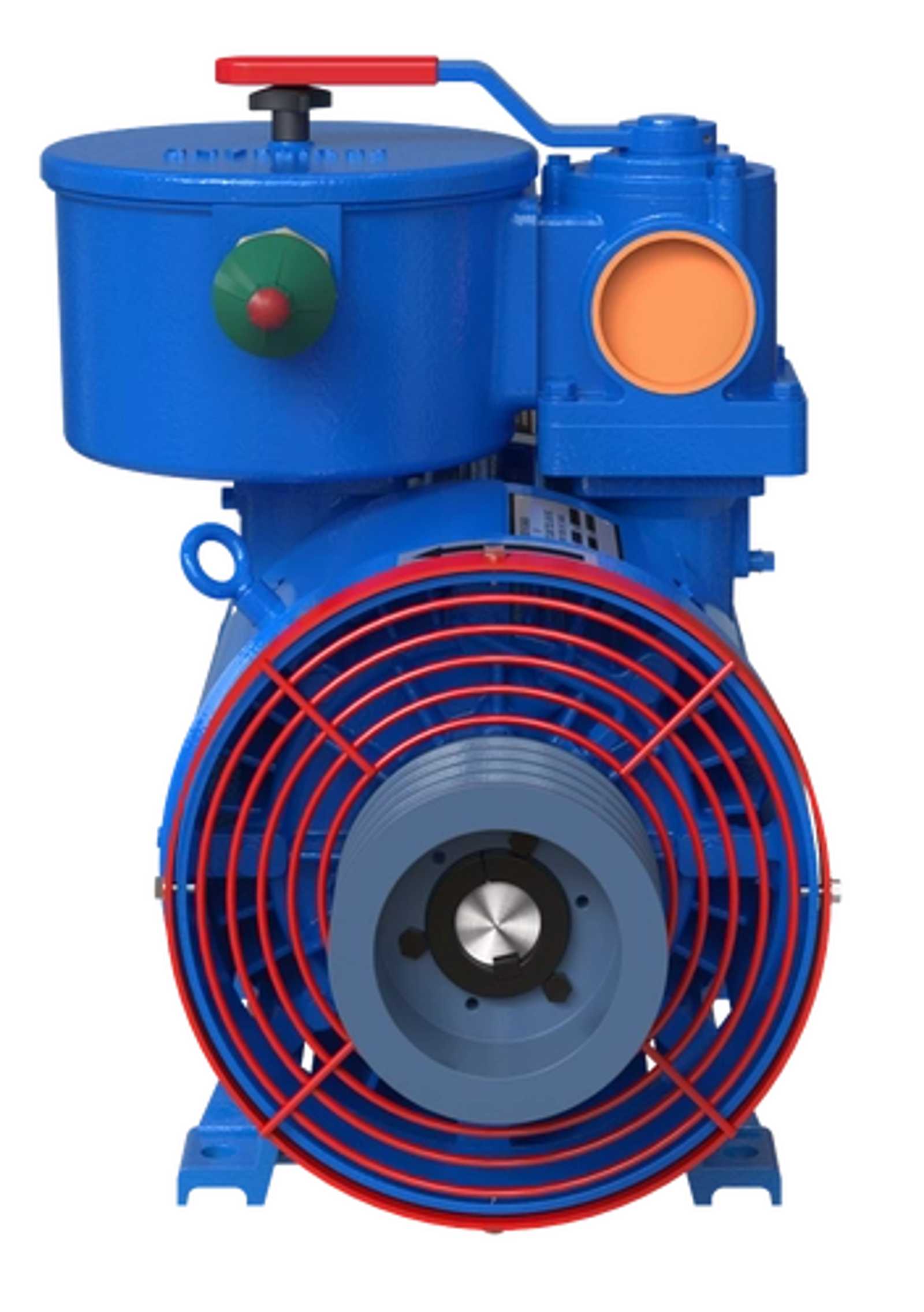

The Fruitland RCF500 series is the perfect mix of power and utility. This fan cooled pump provides the best combination of efficiency and power, and uses less oil than other rotary vane pumps. The RCF500 pump can be found in mobile vacuum applications across the world in industries such as oil & gas, environmental & wastewater, industrial, and many more.
Approximate free air flow – 338 CFM
Maximum vacuum – 28.5″ Hg
Power required @ 27″ Hg – 23 BHP
Max pressure – 35 PSI
Size of hoses – 3″
Max input speed – 1400 RPM
Approx. net pump weight – 450 LBS
500LU
- Left (Counter Clockwise)
- Upper (Top Valve)
500LS
- Left (Counter Clockwise)
- Side Valve
500LUF
- Left (Counter Clockwise)
- Upper (Top Valve)
- Integrated Filter
500LUFH
- Left (Counter Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Hydraulic Drive Adapter
500LSFH
- Left (Counter Clockwise)
- Side Valve
- Integrated Filter
- Hydraulic Drive Adapter
500LUFA
- Left (Counter Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Right Angle Drive Adapter
500RU
- Right (Clockwise)
- Upper (Top Valve)
500RS
- Right (Clockwise)
- Side Valve
500RUF
- Right (Clockwise)
- Upper (Top Valve)
- Integrated Filter
500RUFH
- Right (Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Hydraulic Drive Adapter
500RSFH
- Right (Clockwise)
- Side Valve
- Integrated Filter
- Hydraulic Drive Adapter
500RSFA
- Right (Clockwise)
- Side Valve
- Integrated Filter
- Right Angle Drive Adapter
500RUFA
- Right (Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Right Angle Drive Adapter
