- Automatic lubrication (oil pump)
- 8 (kevlar) vanes
- Fan cooling continuous duty
- Belt drive, hydraulic, or angle drive
- CC or CCW rotation
- Top or side mount configuration available
- Air intake filter

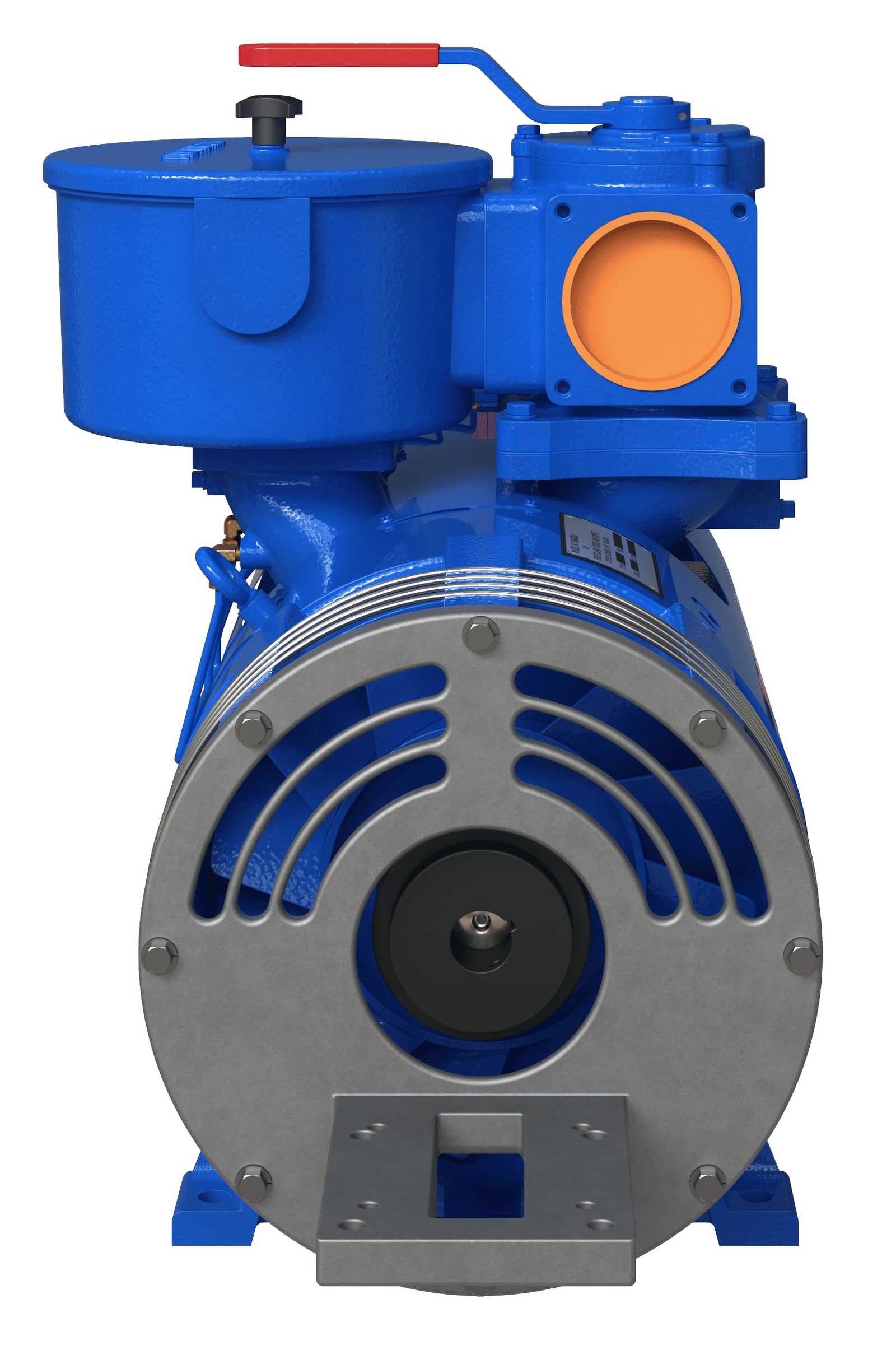

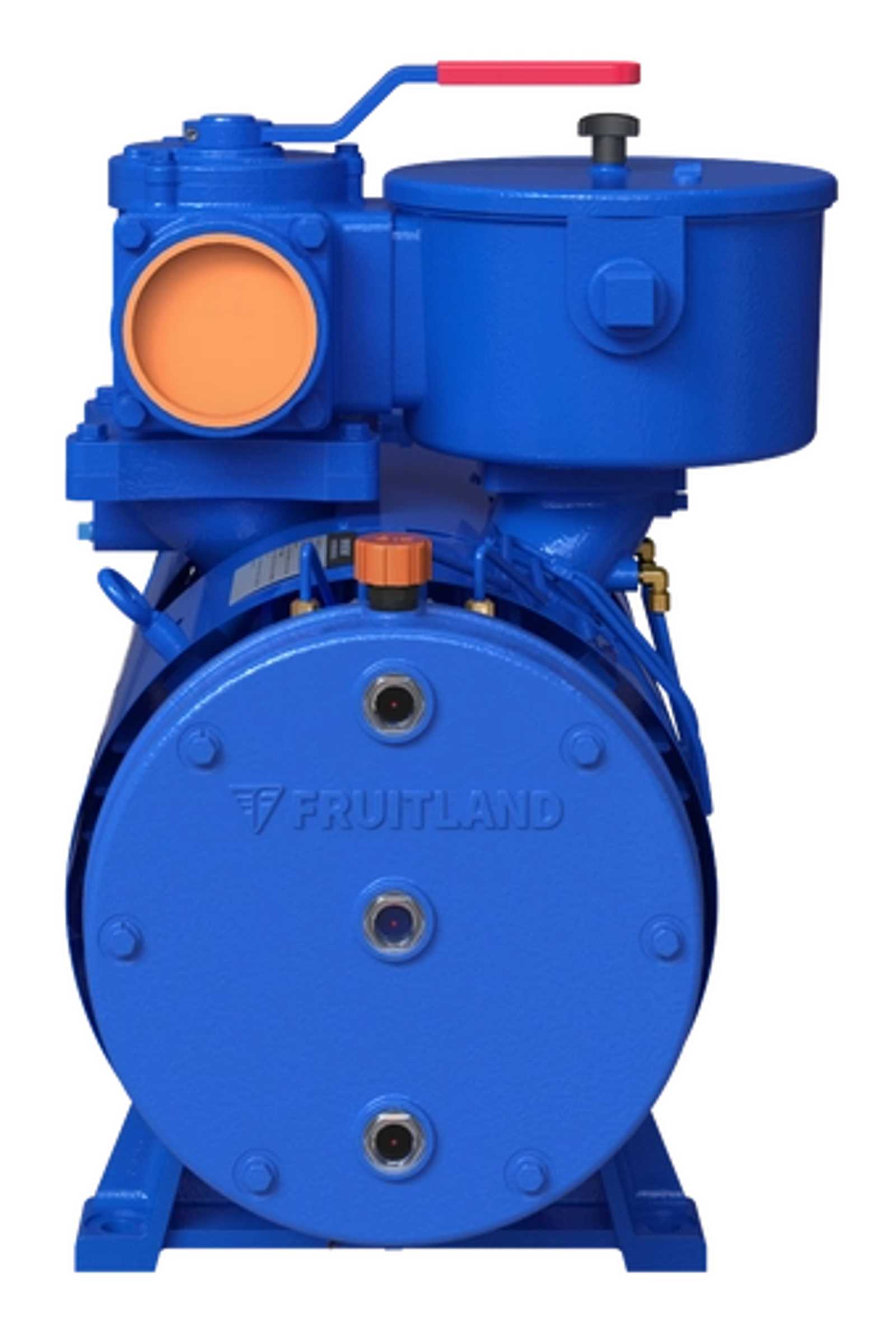

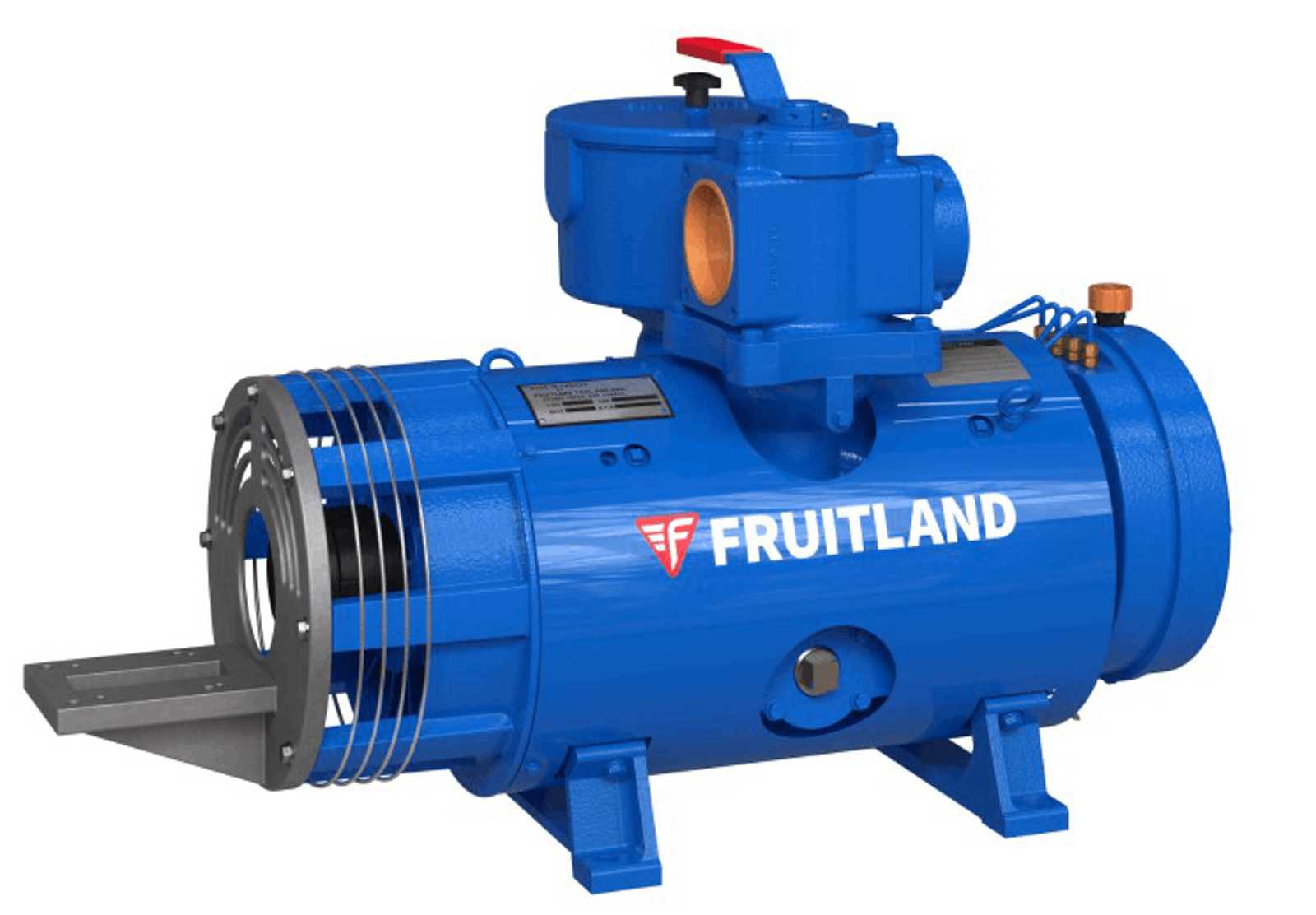

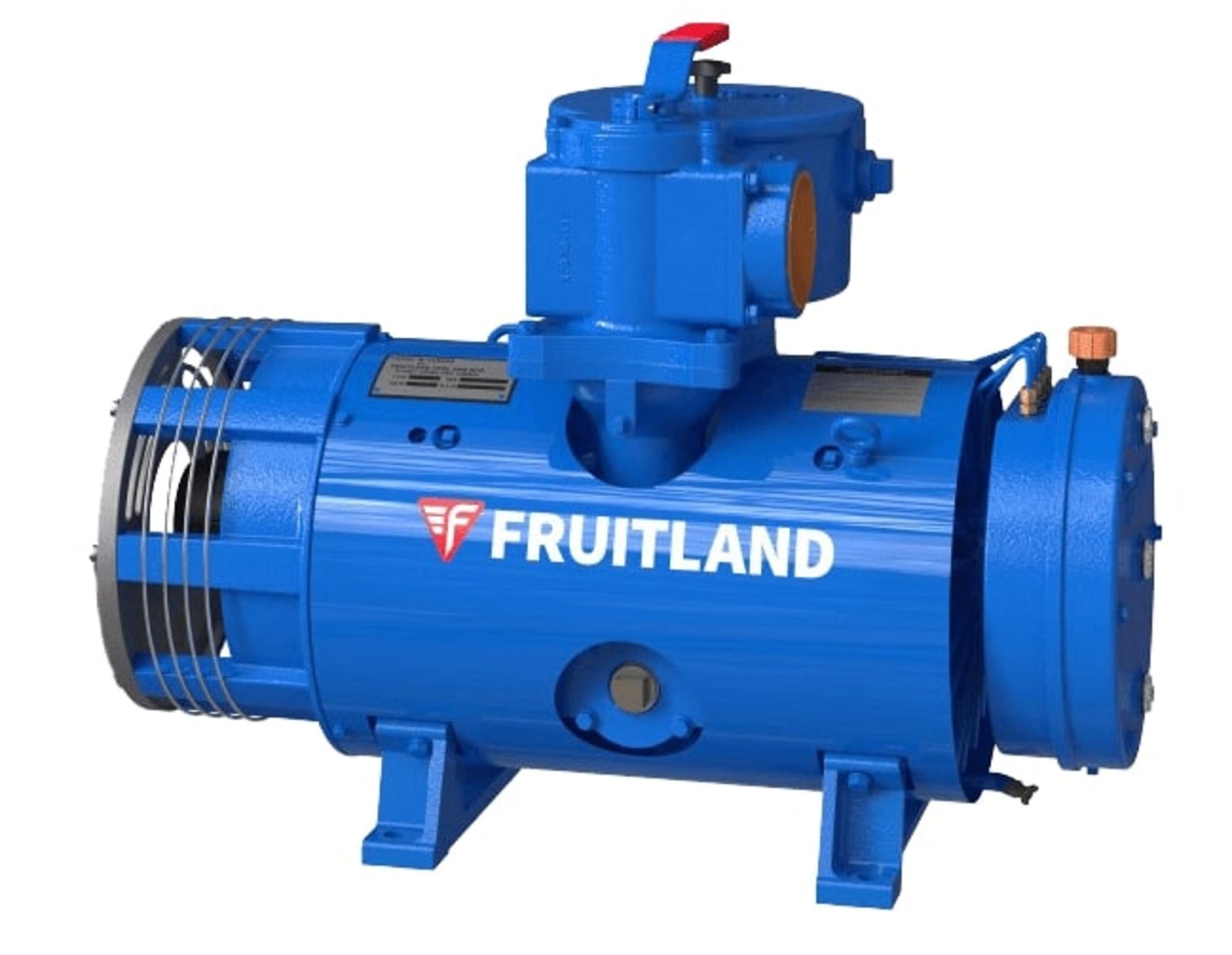

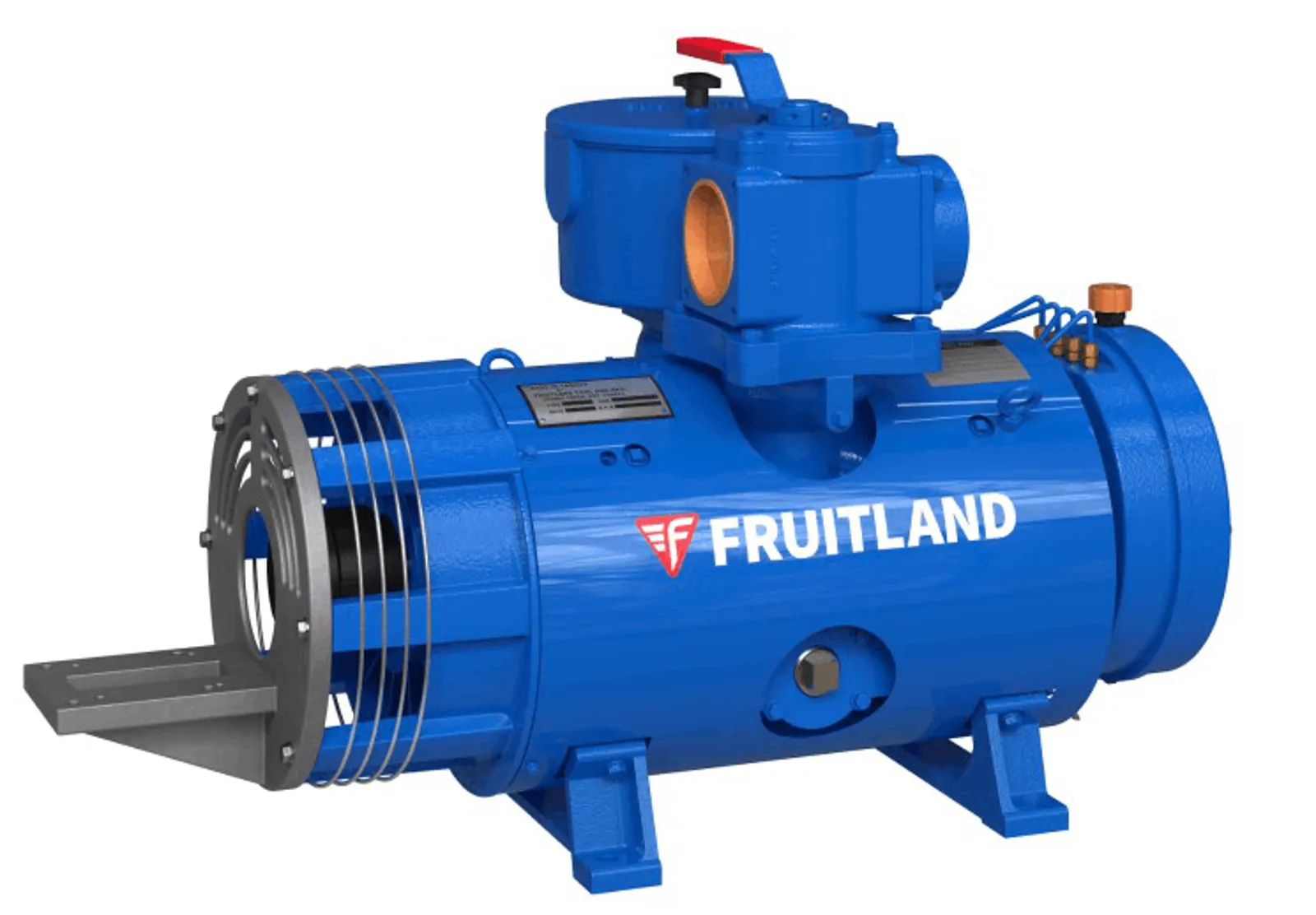

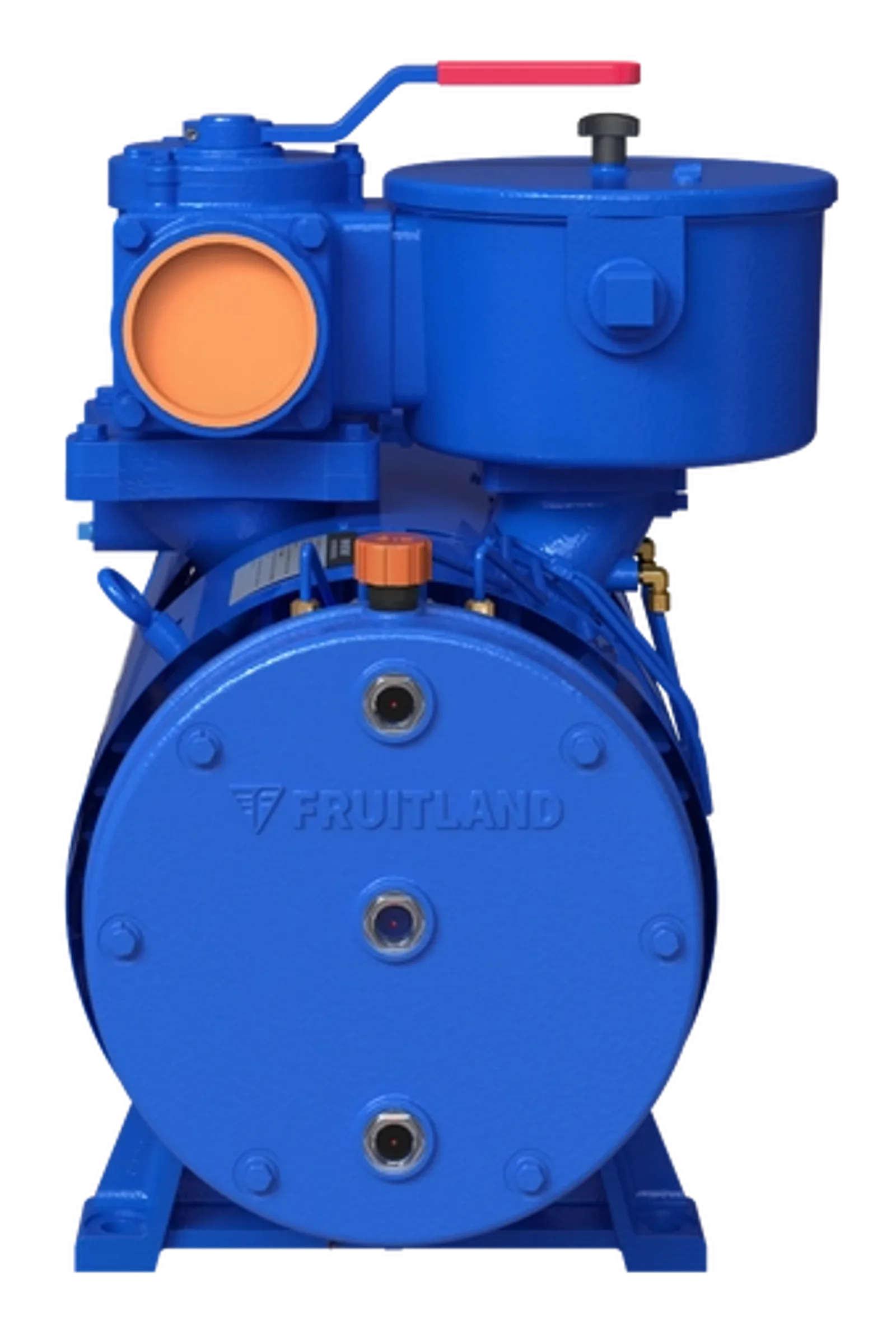

The Fruitland RCF870 fan cooled vacuum pump series offers more power and air flow. And with an optional air injection system allowing for continuous operation at high vacuum, it is used in many industries such as oil & gas, environmental & wastewater, industrial, commercial, and more.
Approximate free air flow – 501 CFM
Maximum vacuum – 28.5″ Hg/30 PSI
Power required @ 27″ Hg – 42 BHP
Max pressure – 35 PSI
Size of hoses – 4″
Max input speed – 1400 RPM
Approx. net pump weight – 575 LBS
870LU
- Left (Counter Clockwise)
- Upper (Top Valve)
870LS
- Left (Counter Clockwise)
- Side Valve
870LUF
- Left (Counter Clockwise)
- Upper (Top Valve)
- Integrated Filter
870LUFH
- Left (Counter Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Hydraulic Drive Adapter
870LSFH
- Left (Counter Clockwise)
- Side Valve
- Integrated Filter
- Hydraulic Drive Adapter
870LSFA
- Left (Counter Clockwise)
- Side Valve
- Integrated Filter
- Right Angle Drive Adapter
870LUFA
- Left (Counter Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Right Angle Drive Adapter
870RU
- Right (Clockwise)
- Upper (Top Valve)
870RS
- Right (Clockwise)
- Side Valve
870RUF
- Right (Clockwise)
- Upper (Top Valve)
- Integrated Filter
870RUFH
- Right (Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Hydraulic Drive Adapter
870RSFH
- Right (Clockwise)
- Side Valve
- Integrated Filter
- Hydraulic Drive Adapter
870RSFA
- Right (Clockwise)
- Side Valve
- Integrated Filter
- Right Angle Drive Adapter
870RUFA
- Right (Clockwise)
- Upper (Top Valve)
- Integrated Filter
- Right Angle Drive Adapter
